Guide Cylinders
 | ・The guide pitch has been doubled. ・The allowable rotational torque of the plate has been improved. The non-rotating accuracy of the plate has been improved. ・Equivalent weight to the basic type |
| Type | Bearing | Series | Action | Bore size (mm) |
|---|---|---|---|---|
| Basic type | Slide bearing ball bushing High precision ball bushing | MGPW | Double acting | 20，25，32，40，50，63 |
■Doubling the guide pitch

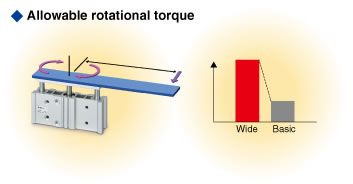

Trebles the allowable plate rotational torque.
2.5N・m←0.75N・m (For MGPWM20-50)
- The allowable rotational torque of the plate is improved by up to 3 times by making the guide pitch twice the basic type and placing the guide components at an optimal location.
- Suitable when used as a pusher or lifter.

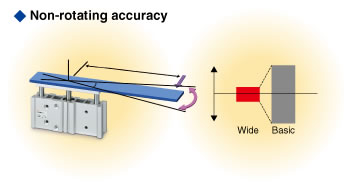

Non-rotating accuracy of the plate improved
±0.03°(Wide type for MGPWL20)±0.09° (Basic type for MGPL20）
- The plate non-rotating accuracy is improved due to the increase in guide pitch.

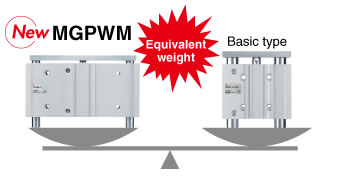

■Equivalent weight to the basic type
Although the volume is 170% more than the MGP basic type, the weight of the MGP wide type is equivalent to the basic type by changing the plate material and optimizing the component dimensions.

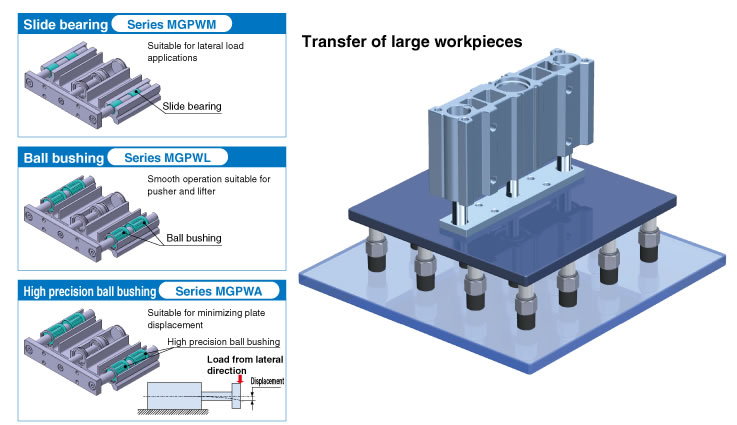

■3 bearing types are available for various applications

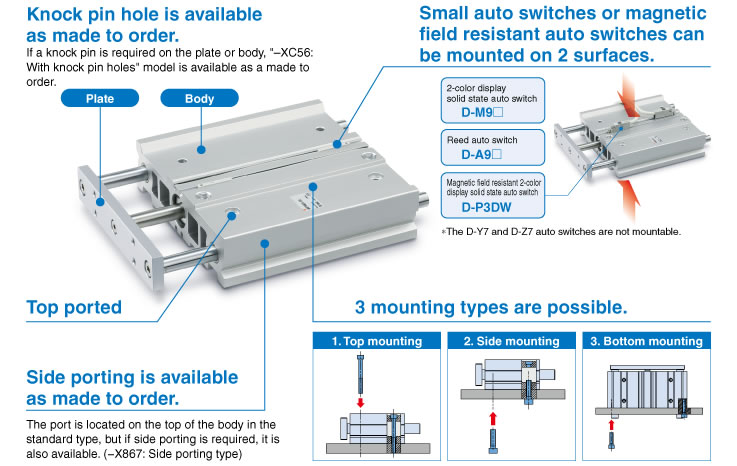

■Other Features

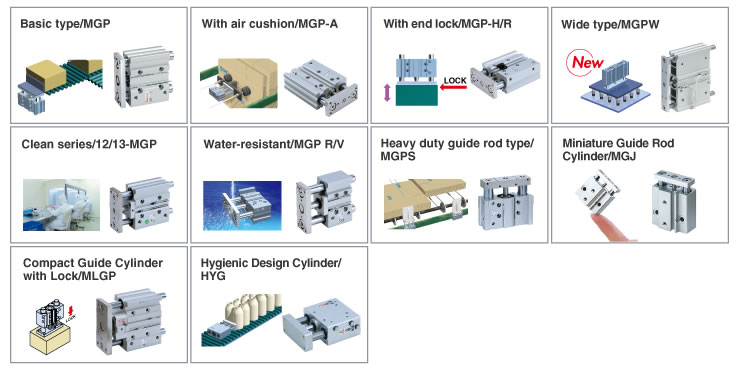

■Compact Guide Cylinders, Series Variations
Compact Guide Cylinder/Wide Type MGPW
- Product Code: MGPW Compact Guide Cylinder/Wide Type
- Availability: In Stock
-
-
